External Halyard Ground Set Cone Tapered Aluminum Flagpoles
Made in the USA premium flagpoles for long-lasting use. Poles built to standard for business, industrial, commercial, design architectural, and residential use. Great for, general contractors, car dealerships, architects, and businesses that need a pole that will last a lifetime in all weather.
The **Architectural Series Ground-Set Aluminum Flagpoles** — available in heights from 20 ft to 80 ft — deliver premium, high-performance flag display solutions engineered for durability, elegance, and extreme weather resistance. Proudly made in the USA from high-grade aluminum, these commercial-grade flagpoles are ideal for residential homes, businesses, corporate campuses, government facilities, schools, and coastal or high-wind locations.
Featuring a sleek, cone-tapered design with anodized finishes (satin, bronze, or black), they resist corrosion, oxidation, and fading while requiring minimal maintenance—just occasional soap-and-water cleaning to keep the lustrous appearance. Built to meet stringent architectural standards, these external-halyard flagpoles combine timeless style with robust engineering for reliable, eye-catching flag presentations that stand the test of time.
**Key Features & Benefits**
- Lightweight yet exceptionally strong aluminum construction (6063-T6 alloy or equivalent premium grade)
- High wind ratings — unflagged up to 315 MPH on select models, flagged up to 120+ MPH (engineered for coastal and severe weather zones)
- Gold anodized aluminum ball ornament and cast aluminum revolving truck with pulley for smooth operation
- Solid braided polypropylene halyard with swivel flag snaps for tangle-free performance
- Multiple anodized finish options: satin (natural), bronze, or black for custom aesthetic matching
- Low-maintenance, corrosion-resistant design — no painting or frequent upkeep required

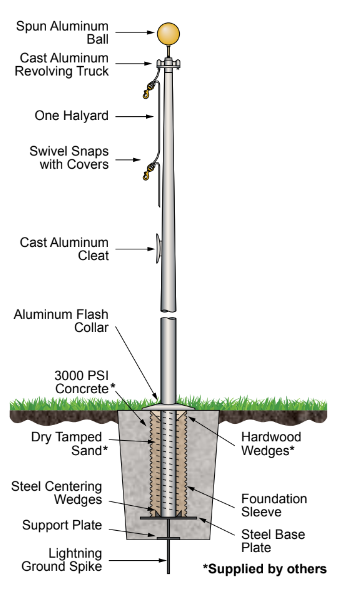

**What's Included**
- Gold anodized aluminum ball ornament
- Cast aluminum revolving truck assembly with pulley
- Galvanized steel foundation sleeve for secure, in-ground installation
- Spun aluminum flash collar and heavy-duty cleat with screws
**Pro Installation & Maintenance Tips**
- Follow local building codes and guidelines, especially in high-wind or coastal areas, for optimal foundation setup.
- Choose anodized finishes for enhanced longevity and reduced maintenance in harsh environments.
- Clean periodically with mild soap and water to preserve the premium shine and protect against environmental buildup.

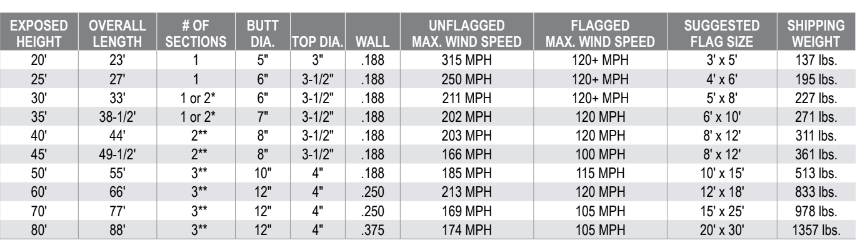

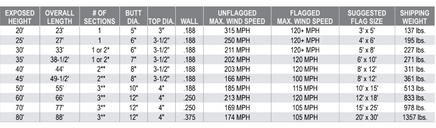

| Model |
Exposed Height |
Overall Length |
# of Sections |
Butt Dia. |
Top Dia. |
Wall Thickness |
Unflagged Max Wind Speed |
Flagged Max Wind Speed |
Suggested Flag Size |
Shipping Weight |
| EC20 |
20' |
23' |
1 |
5" |
3" |
.188 |
315 MPH |
120+ MPH |
3' x 5' |
137 lbs |
| EC25 |
25' |
27' |
1 |
6" |
3-1/2" |
.188 |
250 MPH |
120+ MPH |
4' x 6' |
195 lbs |
| EC30 |
30' |
33' |
1 or 2* |
6" |
3-1/2" |
.188 |
211 MPH |
120+ MPH |
5' x 8' |
227 lbs |
| EC35 |
35' |
38-1/2' |
1 or 2* |
7" |
3-1/2" |
.188 |
202 MPH |
120 MPH |
6' x 10' |
271 lbs |
| EC40 |
40' |
44' |
2** |
8" |
3-1/2" |
.188 |
203 MPH |
120 MPH |
8' x 12' |
311 lbs |
| EC45 |
45' |
49-1/2' |
2** |
8" |
3-1/2" |
.188 |
166 MPH |
100 MPH |
8' x 12' |
361 lbs |
| EC50 |
50' |
55' |
3** |
10" |
4" |
.188 |
185 MPH |
115 MPH |
10' x 15' |
513 lbs |
| EC60 |
60' |
66' |
3** |
12" |
4" |
.250 |
213 MPH |
120 MPH |
12' x 18' |
833 lbs |
| EC70 |
70' |
77' |
3** |
12" |
4" |
.250 |
169 MPH |
105 MPH |
15' x 25' |
978 lbs |
| EC80 |
80' |
88' |
3** |
12" |
4" |
.375 |
174 MPH |
105 MPH |
20' x 30' |
1357 lbs |
Discover the full range of flagpole solutions at Flags Unlimited, your trusted veteran-owned source for premium American-made flagpoles, hardware, accessories, solar/LED lighting kits, and custom flags. Elevate your outdoor display with unmatched quality, pride, and performance—shop now and honor your values with a flagpole built to last. For quotes on taller models or custom needs, contact us.
